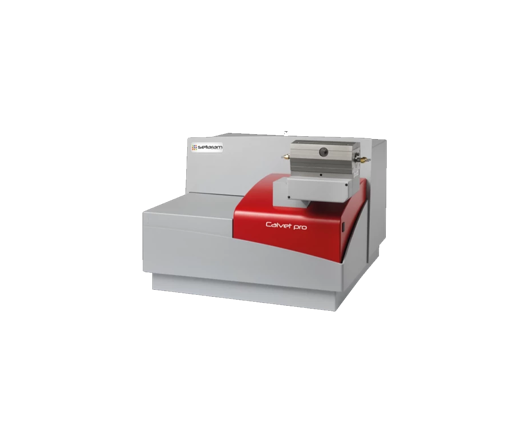

CALVET PRO

Highest heat measurement accuracy, calvet 3D sensor based on thermocouples with joule effect calibration.

Highest mass variation accuracy with its optional Hang-down Symmetrical Beam Balance.

Sub-ambient to high temperature operations, from -120 to 830 °C.

Isothermal or temperature scanning modes for increased flexibility and replication of real life conditions.

Convenient interchangeable crucibles and cells to perform even the most demanding experiments using one instrument: high pressure (up to 500 bar) and high vacuum, pressure resistance, measurement or control and packed bed reactor experiments.

External coupling Capability

Temperature
Temperature range (°C)
Ambient to 830°C -120 to 200 °C (with cooling accessory)

Temperature accuracy (°C)
+/- 0.05*

Temperature precision (°C)
+/- 0.15*

Programmable temperature scanning rate (°C/min)
0.01 to 30

Heat & Heat Flow
Enthalpy accuracy (%)
+/- 0.8*

Calorimetric precision (%)
+/- 0.4*

RMS noise (μW)
0.2

Resolution (μW)
0.35; 0.035

Dynamic Range (mW)
+/- 290; +/- 2900

Mass Variation
Weighing accuracy (%)
+/- 0.1**

Weighing precision (%)
+/- 0.05**

RMS noise (μg)

0.5

Resolution (μg)
0.02; 0.002

Baseline dynamic drift (µg)
< 15

Weight Range (mg)
+/- 200

General
Crucible or cells volume (ml)
Up to 0.32 depending on the chosen design and material (aluminium, incoloy, graphite, alumina, platinum, etc)

Pressure (bar [psi])
400 [5,800] (measured and controlled); 500 [7,250] (resistant)

Weight (kg)
45; 55***

Dimensions (Height/Width/Depth)
45 / 53 / 58 cm

Power requirements
230V-50/60 Hz
