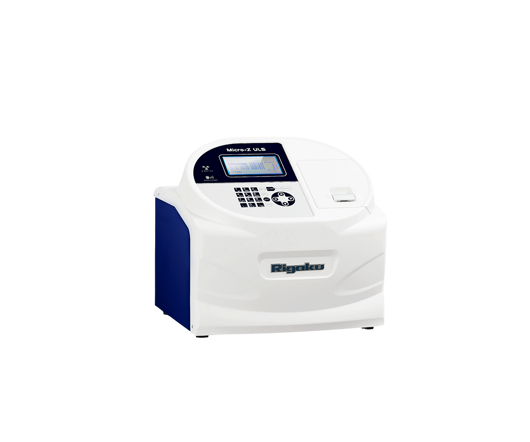

Micro-Z ULS WDXRF Ultra-Low Sulfur Analyzer

The Micro-Z ULS provides high sensitivity sulfur analysis with a detection limit down to 0.3 ppm. Its fixed optical design operating in a vacuum environment ensures stable and consistent performance.

A specially developed doubly curved RX-9 analyzing crystal enhances measurement sensitivity, allowing accurate detection even at very low sulfur levels. The instrument is designed for simplicity, featuring an intuitive user interface suitable for routine laboratory use.

Technique Wavelength dispersive X-ray fluorescence
Benefit Ultralow level sulfur analysis of fuels: ISO 20884, ASTM D2622 and JIS K2541-7
Technology WDXRF (fixed channel w/ background correction)
Attributes 40 kV Cr-anode X-ray tube, doubly curved RX-9 analyzing crystal
Options Thermal dot printer, RS-232C data output
Computer Internal computer, Micro-Z ULS software
Dimensions 450 (W) x 410 (H) x 440 (D) mm
Mass 36 kg (core unit)
Power requirements 1Ø, 100-120 VAC, 15 A or 200-240 VAC, 10 A
