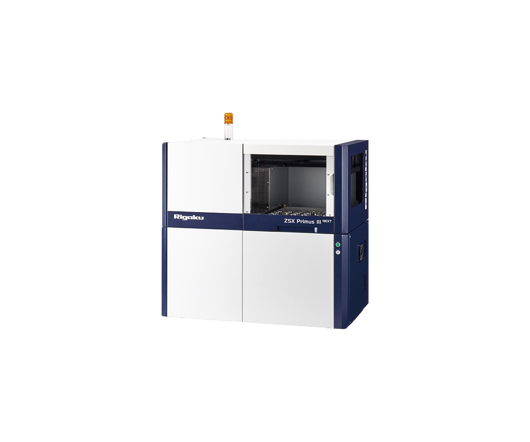

ZSX Primus III Next

Designed for demanding industrial environments, the ZSX Primus III NEXT features a tube-above configuration that minimizes contamination risks and improves system reliability and uptime. The spectrometer supports several turnkey application packages, including pre-installed calibration curves, calibration packages with standard samples, and the SQX master matching library for standardless analysis.

Integrated ZSX Guidance software assists with calibration development, while fast measurement times deliver precise results within minutes. Data sharing capabilities also allow multiple spectrometers across different laboratories to operate using the same calibrations, ensuring consistent analytical performance.

Analytical range ₈O - ₉₆Cm standard (₄Be - ₉₆Cm Optional - depending on crystal configurations)
Spectral method Wavelength dispersive X-ray fluorescence
Atmosphere Vacuum
X-ray tube End window type Rh target 3 kW
Irradiation method Tube-above
Sample changer Expandable sample changer with up to 48 positions
Sample inlet Air lock system
Maximum sample size φ 52 mm × 30 mm (H)
Primary filter Ni400, Ni40, Al125, Al25
Primary Soller slit 3 positions automatic exchange mechanism; Standard and fine slits; Optional: Ultralight element slit
Analyzing crystal Standard: LiF, 200, PET, RX26
Pulse height analyzer Digital multichannel analyzer (DMCA)
Detector SC (Scintillation counter); F-PC (Gas flow proportional counter); Optional: S-PC LE (Gas sealed proportional counter: does not require P-10 gas)
Power requirements Instrument: Single (200 - 240 V), three phase (200 V) 50/60 Hz 40A; Personal computer: 1-phase, 100-240 V, 10A
