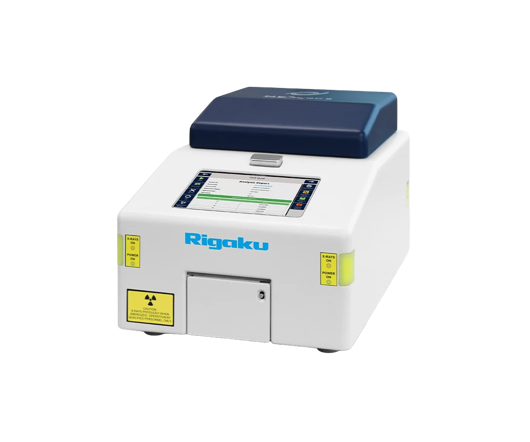

NEX QC II Series
The NEX QC II Series makes non-destructive elemental analysis easy, streamlining quality control and elemental analysis. The series consists of two compact benchtop EDXRF analyzers, NEX QC II and NEX QC II+, providing rapid results for solids and powders as well as liquid samples. Designed with user-friendliness in mind, the NEX QC II and NEX QC II+ offer intuitive operation, with an integrated computer and a built-in printer. This allows users to generate results quickly without requiring specialized technical training.
The NEX QC II series EDXRF systems are widely implemented in:
• Mining
• Coal and oil
• Polymers
• Food and feed
• Metals and alloys
Its compact simplified infrastructure requirements make it particularly suitable for laboratories with space constraints or decentralized analytical needs.
Product Information
The NEX QC II series enables:
Elemental analysis from Na to U using empirical calibration, from ppm to percent levels
The systems are configured with a high-performance silicon drift detector and 50 kV X-ray tube. Measurements in helium atmosphere or vacuum are possible.
NEX QC II is the basic system designed for elemental analysis. NEX QC II+ features improved performance for lighter elements and with higher spectral resolution.
Product Specification
X-ray Source 50 kV X-ray tube
Maximum Power 4 W
Cooling type Air-cooled
Elemental range Na - U
Detector Large-area graphene window silicon drift detector
Sample Types Powders, bulk solids, liquids, thin films
Sample Holder Capacity Automated sample changer (optional)
Software Embedded computer, icon-driven graphical user interface
Safety Fully enclosed, radiation-safe cabinet
Power Supply 1-phase, 100 – 240 V, 1.15 A (50/60 Hz)
Footprint 287 (W) x 465 (H) x 262 (D) mm
Note: Specifications may vary depending on system configuration and optional accessories.
